Hemoconcentrator - Adult, Pediatric, and Infant

A hemoconcentraor is a medical device used during cardiopulmonary bypass (CPB) surgeries to remove excess fluids form the blood.

Material Composition

1. Hollow fiber membrane made up of Polyethersulfone
2. Casing/ Shell made up of Polypropylene
3. Ports and connector made up of medical Grade P.V.C
4. O-Rings & seals are made up of silicon based material

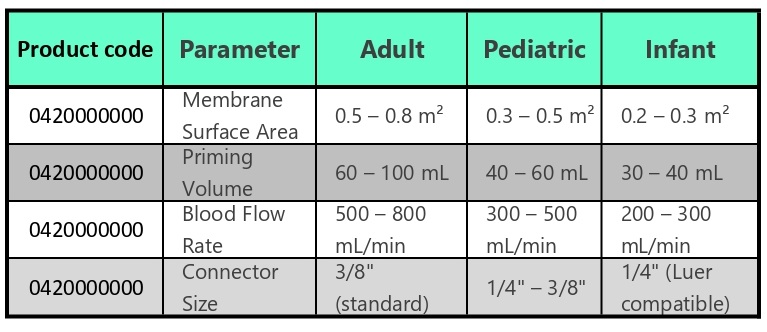

Table

• Adults: Higher flow rates, larger priming volumes for major surgeries.
• Pediatrics: Balanced between flow efficiency and reduced priming volume.
• Infants/Neonates: Minimal priming volume, lower blood flow, compact design.
• Connectors: Smaller sizes (1/4") for infants to prevent excessive hemodilution.
